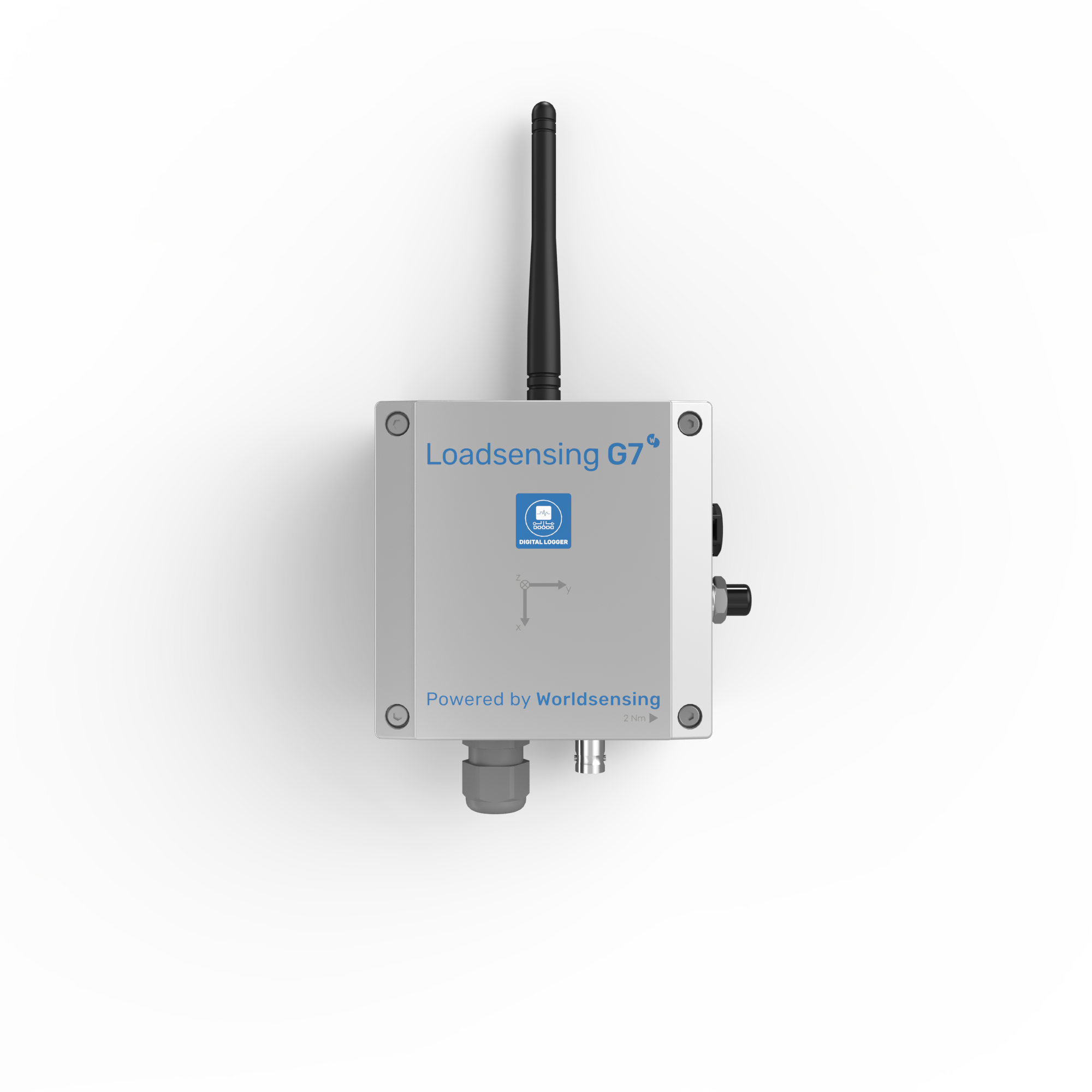

G7 & G6 Digital Data Logger

In-place inclinometers (IPIs) are positioned at fixed locations in the inclinometer borehole for  continuous monitoring. Connect ShapeArrays and IPIs to wirelessly transmit data using the Digital Data Logger or the broadband Thread X3 for longer chains.
Up to 200 segments of ShapeArray using the Digital Data Logger and up to 300 segments using the Thread X3.

Leverage compatibility with all major manufacturers of multi-point extensometers (MPBX) and in-place extensometers (IPX). Connect any vibrating wire, potentiometer, or analog displacement sensors installed in the head of the extensometer to the appropriate data logger. Digital MPBXs allow for reading more points with a single Digital data logger and enable the connection of more than one MPBX to the node.

If higher spatial resolution is needed, a chain of in-place extensometers can be installed in the borehole and connected to a Digital data logger.

The Digital data logger can be utilized to read and transmit the 3-D stress measurements from HID cells via a digital converter.

Connect piezometers and multi-point piezometers from all the major geotechnical sensor manufacturers. Use 1-channel, 2-channel or 6-channel Vibrating Wire data loggers to transmit data from any number of sensor configurations. Water level sensors can be connected through Analog or Digital data loggers.

Assess soil water tension and moisture with a tensiometer and a granular matrix sensor both connected to an Analog data logger. Additionally, measure volumetric water content with a soil moisture sensor connected to a Piconode. You can also connect the Digital date logger to one or a chain of digital tensiometers.

Monitor the pot bearing pressure and displacement through pressure sensors, extensometers or crackmeters. Control the joint expansions and contractions wirelessly connecting these sensors to Analog, Digital or Vibrating Wire data loggers.

Compatibility with major weather transmitter manufacturers via digital interface. Monitor precipitation, air temperature and other weather parameters using a weather transmitter connected to a Digital data logger or a ThreadX3. Multiple configurations readily available to stream the right data to your information systems.

Control motor and pump protection systems connecting them to the Digital data logger. Monitor water flow and performance in dewatering operations with a Variable Frequency Drive (VDF) and a flowmeter connected to a ThreadX3.

Leverage compatibility with all major manufacturers of multi-point extensometers (MPBX) and in-place extensometers (IPX). Connect any vibrating wire, potentiometer, or analog displacement sensors installed in the head of the extensometer to the appropriate data logger. Digital MPBXs allow for reading more points with a single Digital data logger and enable the connection of more than one MPBX to the node.

Analyze the quality of water with a water multi-parameter probe connected to a Digital data logger or a ThreadX3.

Monitor settlement, heave and building response to tunneling and excavation with a liquid level settlement system connected to the Analog or the Digital data logger. Alternatively, you can use the Tiltmeter attached to a rigid beam and installed in a chain.

Ensure the proper functionality of anchor systems (active and passive) by monitoring in a representative sample the load throughout their lifecycle including the load tests and stressing works. Stream data wirelessly from most of the load cells based on resistive strain gauges available in the market using the Piconode data logger. The 6-channel Vibrating Wire and the Digital data loggers can also be suitable, depending on the type of load cell.
