Civil Infrastructure Monitoring

Connect piezometers and multi-point piezometers from all the major geotechnical sensor manufacturers. Use 1-channel or 5-channel Vibrating Wire data loggers to transmit data from any number of sensor configurations. Water level sensors can be connected through Analog or Digital Data Loggers.

In-place inclinometers are positioned at fixed locations in the inclinometer borehole allowing continuous monitoring. Connect Shape Arrays and IPIs and wirelessly transmit data using the Digital Data Logger or the broadband ThreadX3 for longer chains.

Up to 200 segments of Shape Array using the Digital Logger and up to 300 segments using the ThreadX3.

Use cost-efficient GNSS sensors connected to a ThreadX3 to accurately monitor ground movements and land deformation in vast areas such as tailings dams, open-pit mines and their surrounding areas, regions affected by subsidence and decommissioned mines.

Complement your geotechnical monitoring with a total station connected to a ThreadX3 for accurate movement detection.

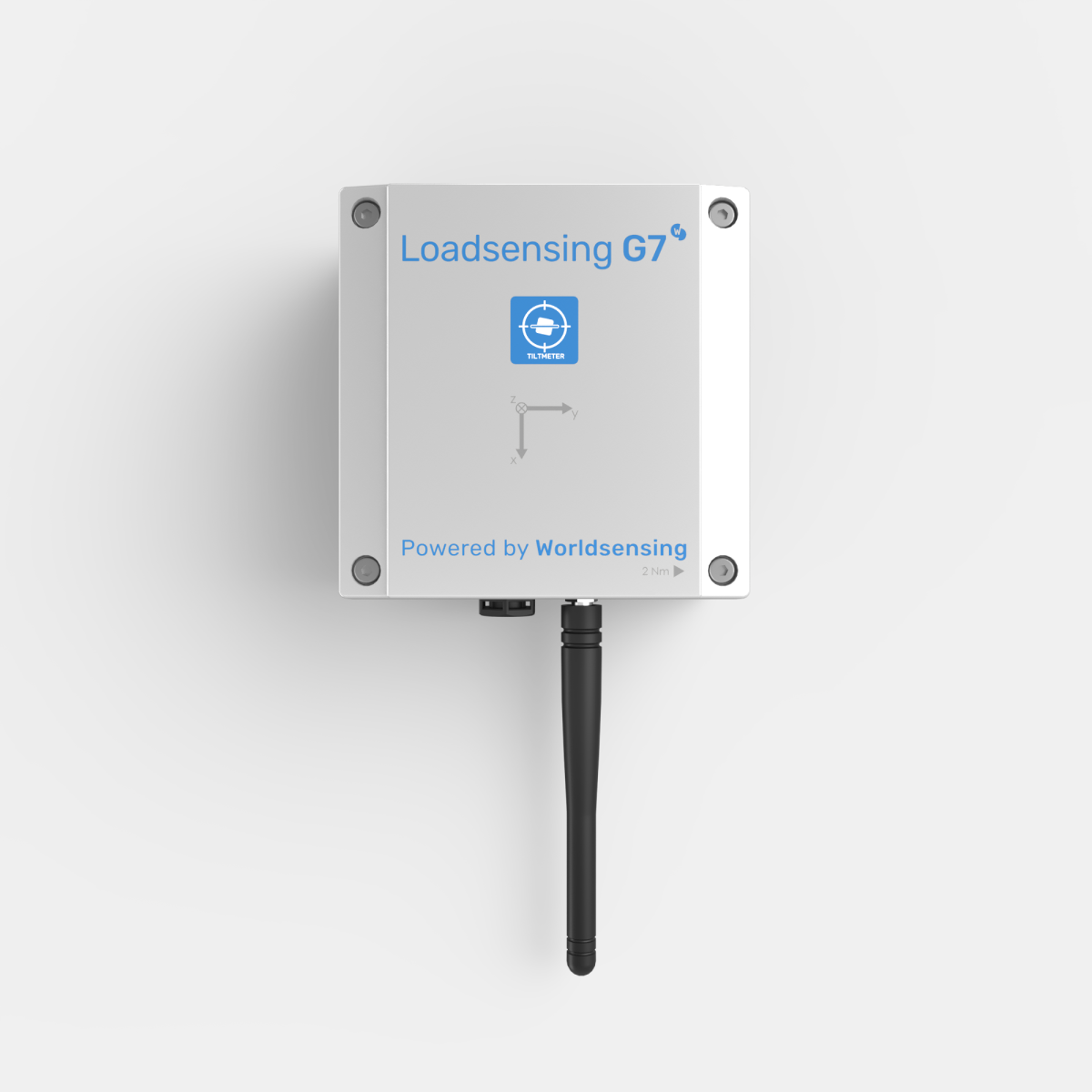

When rapid detection is necessary for real-time decision-making, use G7 Tiltmeters event detection operational mode. It offers less than 2 seconds of latency for movement detection. Paired with in-field cameras connected through Thread X3, they form a complete Early Warning System for end-to-end solution for effective risk management.

Attach VW Strain Gauges to the steel arch supported by arc welding them directly to the steel arch to achieve long-term strain measurements of the structural element. Connect the gauges to the Vibrating Wire 5-channel data logger. Additionally, it is possible to embed VW Strain Gauges in the shotcrete to measure strains within the tunnel lining.

Measure total pressure (effective stress and pore water pressure) within embankments -such as tailings dams- and fills to determine its distribution and magnitude. Pressure cells can also be used to measure at the interface between soil and structures. Assess the total pressure measurements with pressure cells connected to the Vibrating Wire 5-channel data logger.

Crack meters available in the market can be readily connected to a Vibrating Wire 1-channel data logger or the Piconode to monitor movement across surface cracks.

Assess soil water tension and moisture with a tensiometer and a granular matrix sensor both connected to an Analog Data Logger. Additionally, measure volumetric water content with a soil moisture sensor connected to a Piconode. You can also connect the Digital Logger to one or a chain of digital tensiometers.

Compatibility with major weather transmitter manufacturers via digital interface. Monitor precipitation, air temperature and other weather parameters using a weather transmitter connected to a Digital logger or ThreadX3. Multiple configurations readily available to stream the right data to your information systems.

Analyze the quality of the water with a water multi-parameter probe connected to a Digital Logger or a ThreadX3.

Monitor the impact of vibrations created by industrial activities on people’s comfort with Worldsensing’s Vibration Meter, designed to operate in compliance with industry standards (ISO 2631-2).
